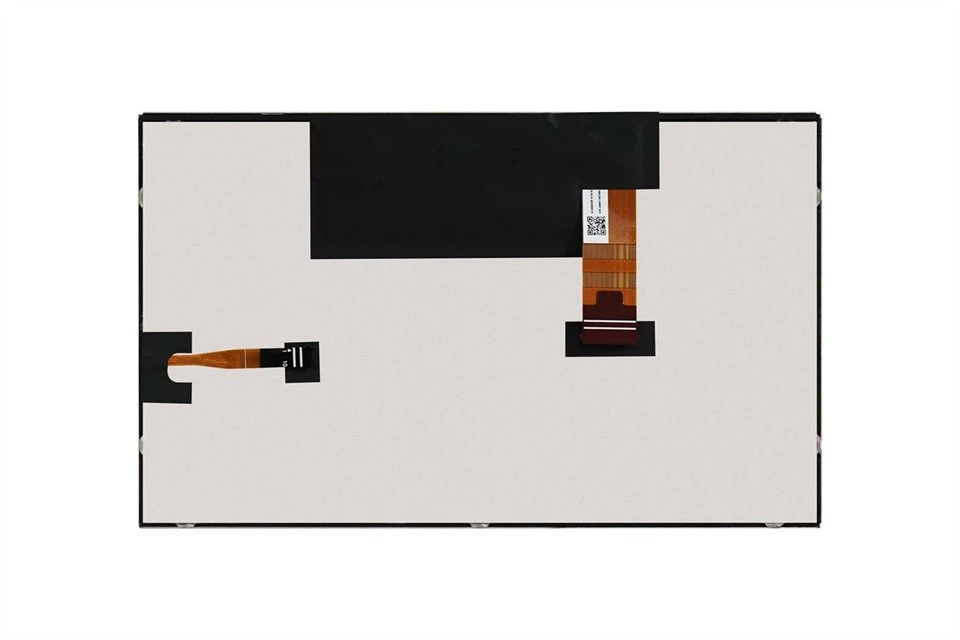

Central Control LCD Screen – Intelligent Command Hub for Modern Control Systems
Product Overview
Designed as the nerve center for mission-critical operations, our Central Control LCD Screen delivers superior visualization, real-time data processing, and seamless multi-system integration. This high-performance display serves as the ultimate command interface for industrial automation, security monitoring, smart buildings, and transportation management systems.
Application Scenarios
◉ Industrial Control Centers – SCADA system monitoring
◉ Smart City Operations – Traffic management & security surveillance
◉ Energy Management – Power grid visualization
◉ Building Automation – HVAC & lighting control
◉ Emergency Response – Crisis management systems
Contact Our Engineering Team for: Custom size/configuration requests
|
ITEM |
SPECIFICATION |
|||
|
Panel Size |
8" inch |
|||
|
Display Area (mm) |
176.64(H) ×99.36(V) |
|||
|
Number of Pixels |
1280(H) x 720(V) |
|||
|
Pixel Pitch (mm) |
0.138(W)x 0.138(H) |
|||
|
Color Pixel Arrangement |
RGB Vertical stripe |
|||
|
Display Mode |
Normally Black |
|||
|
Number of Colors |
16.7M(8bits) |
|||
|
Brightness(cd/m2) |
800nits(typ) |
|||
|
Response Time (ms) |
30ms(typ) |
|||
|
Color Gamut |
70%(typ) |
|||
|
Viewing Direction |
Free |
|||
|
Contrast ratio |
900:1 |
|||
|
Interface connection |
LVDS interface |
|||
|
Module Size(mm) |
|
Min. |
Typ. |
Max |
|
Horizontal (H) |
187.92 |
188.22 |
188.52 |
|
|
Vertical (V) |
113.66 |
113.96 |
114.26 |
|
|
Depth (D) |
5.9 |
6.2 |
6.5 |
|
|
Module Weight (g) |
TBD |
|||
|
Backlight Unit |
LED |
|||
|
Surface Treatment |
HC 3H |
|||
Product details


Power and Signal Info

LVDS Interface Information
