CID display screen
Parameter (Specification)
|
ITEM |
SPECIFICATION |
|||
|
Panel Size |
9" inch |
|||
|
Display Area (mm) |
198.912(H) × 111.888 (V) |
|||
|
Number of Pixels |
1280(H) x 3(RGB) x720(V) |
|||
|
Pixel Pitch (mm) |
0.1554(W)x 0.1554(H) |
|||
|
Color Pixel Arrangement |
RGB vertical stripe |
|||
|
Display Mode |
Normally Black |
|||
|
Number of Colors |
16.7M |
|||
|
Brightness(cd/m2) |
800nits(typ) |
|||
|
Response Time (ms) |
30ms(typ) |
|||
|
Color Gamut |
70% |
|||
|
Viewing Direction |
Free |
|||
|
Contrast ratio |
1000:1 |
|||
|
Interface connection |
LVDS, 40pin |
|||
|
|
|
Min. |
Typ. |
Max |
|
|
Horizontal (H) |
210.8 |
211.1 |
211.4 |
|
Module Size(mm) |
Vertical (V) |
126.2 |
126.5 |
126.8 |
|
|
Depth (D) |
5.4 |
5.7 |
6 |
|
Module Weight (g) |
TBD |
|||
|
Backlight Unit |
LED |
|||
|
Surface Treatment |
HC 3H |
|||
Product details

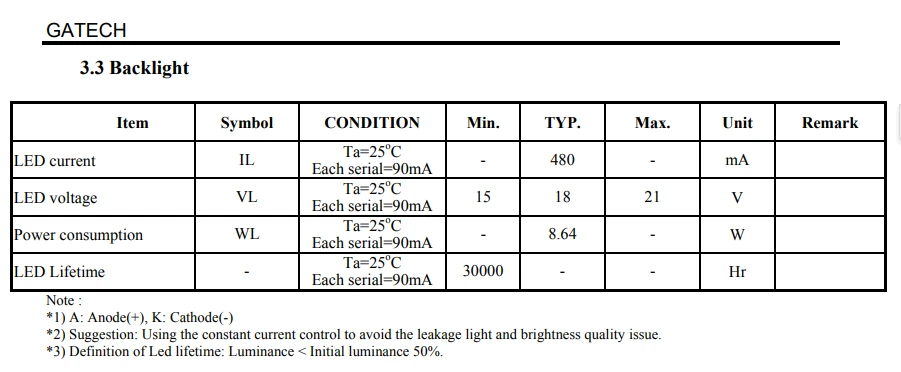

LCD Backlight info
Product drawing
CID Display Screen Product Overview
Product Name: CID (Capacitive Interactive Display) Screen
Applications: Automotive dashboards, industrial control panels, smart home interfaces, medical devices, retail kiosks, and more.
Key Features:
-
High-Resolution Touch Interface
-
Supports multi-touch functionality (up to 10-point touch) for seamless interaction.
-
Ultra-high resolution (up to 4K) with vibrant colors and wide viewing angles.
-
-
Durable & Robust Design
-
Scratch-resistant, anti-glare glass surface for enhanced durability.
-
Operates reliably in extreme temperatures (-30°C to +85°C) and harsh environments.
-
-
Advanced Touch Technology
-
Projected capacitive touch (P-Cap) ensures fast, precise, and smooth response.
-
Supports gloved and wet-touch operation for versatile usability.
-
-
Customizable Options
-
Available in various sizes (7" to 32") and aspect ratios (16:9, 21:9, etc.).
-
Optional integrated LCD/TFT/OLED displays with customizable UI.
-
-
Seamless Connectivity
-
Supports USB, I2C, SPI, and Bluetooth/Wi-Fi for flexible integration.
-
Compatible with Android, Linux, Windows, and embedded OS platforms.
-
-
Enhanced Safety & Compliance
-
Meets IP65/IP67 dust/water resistance standards.
-
Certifications: CE, FCC, RoHS, and automotive-grade reliability.
-
Why Choose Our CID Display?
✔ Superior Responsiveness – Instant touch feedback with <5ms latency.
✔ High Brightness (1000+ nits) – Readable even in direct sunlight.
✔ Long Lifespan – Rated for 100,000+ touch cycles.
✔ OEM/ODM Support – Tailored solutions for your specific needs.
Ideal for:
-
Car infotainment & center console displays
-
Industrial HMI & control systems
-
Public self-service terminals
-
High-end consumer electronics
Contact Us Today!
Upgrade your interactive experience with our cutting-edge CID display technology!
