LCM LCD display module
Parameter (Specification)
|
ITEM |
SPECIFICATION |
|||
|
Panel Size |
4.3" inch |
|||
|
Display Area (mm) |
95.04H) × 53.856 (V) |
|||
|
Number of Pixels |
800(H) x 480(V) |
|||
|
Pixel Pitch (mm) |
0.0396(W)x 0.1122(H) |
|||
|
Color Pixel Arrangement |
RGB vertical stripe |
|||
|
Display Mode |
Normally Black |
|||
|
Number of Colors |
16.7M |
|||
|
Brightness(cd/m2) |
500nits(typ) |
|||
|
Response Time (ms) |
10ms(typ) |
|||
|
Color Gamut |
50% |
|||
|
Viewing Direction |
Free |
|||
|
Contrast ratio |
600:1 |
|||
|
Interface connection |
TTL, 40pin |
|||
|
Module Size(mm) |
|
Min. |
Typ. |
Max |
|
Horizontal (H) |
105.4 |
105.6 |
105.8 |
|
|
Vertical (V) |
67.1 |
67.3 |
67.5 |
|
|
Depth (D) |
2.8 |
3 |
3.2 |
|
|
Module Weight (g) |
TBD |
|||
|
Backlight Unit |
LED |
|||
|
Surface Treatment |
HC 3H |
|||
Product details

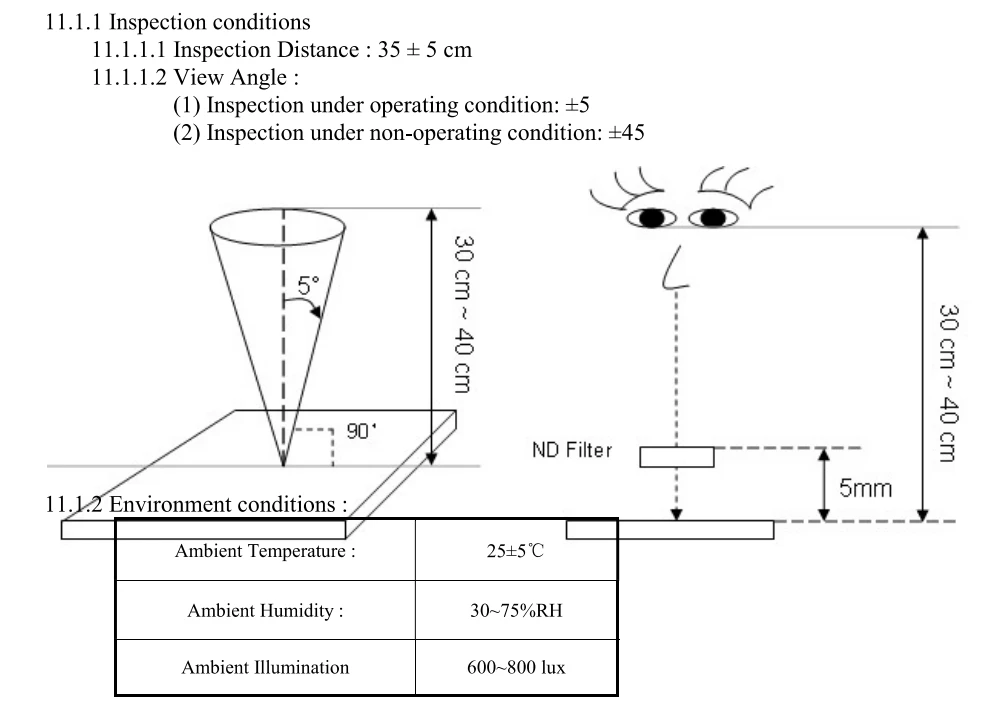

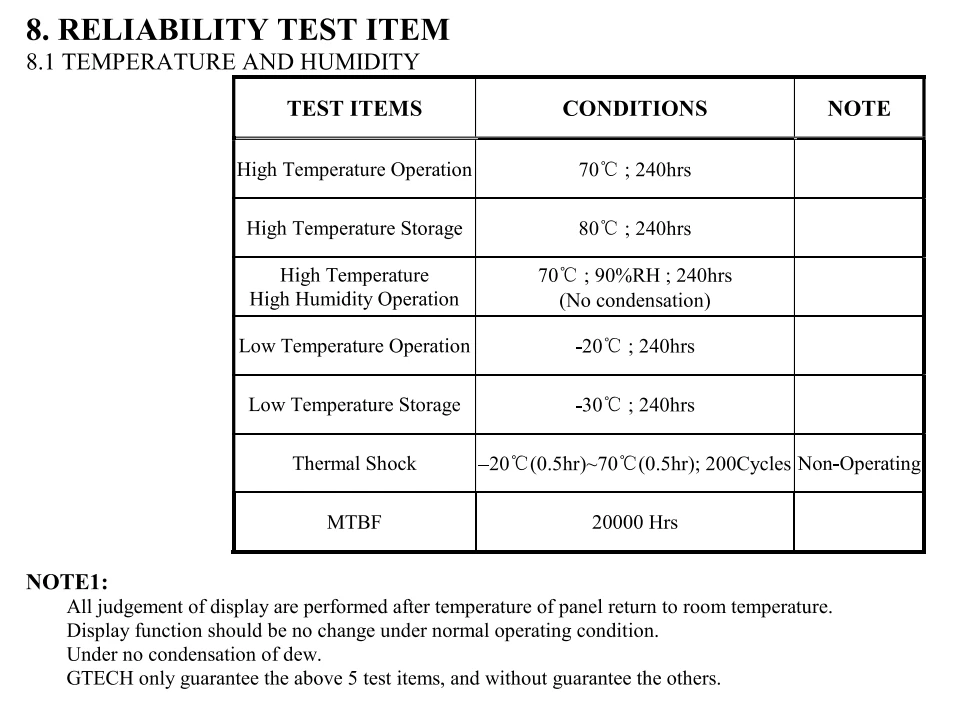

Product test

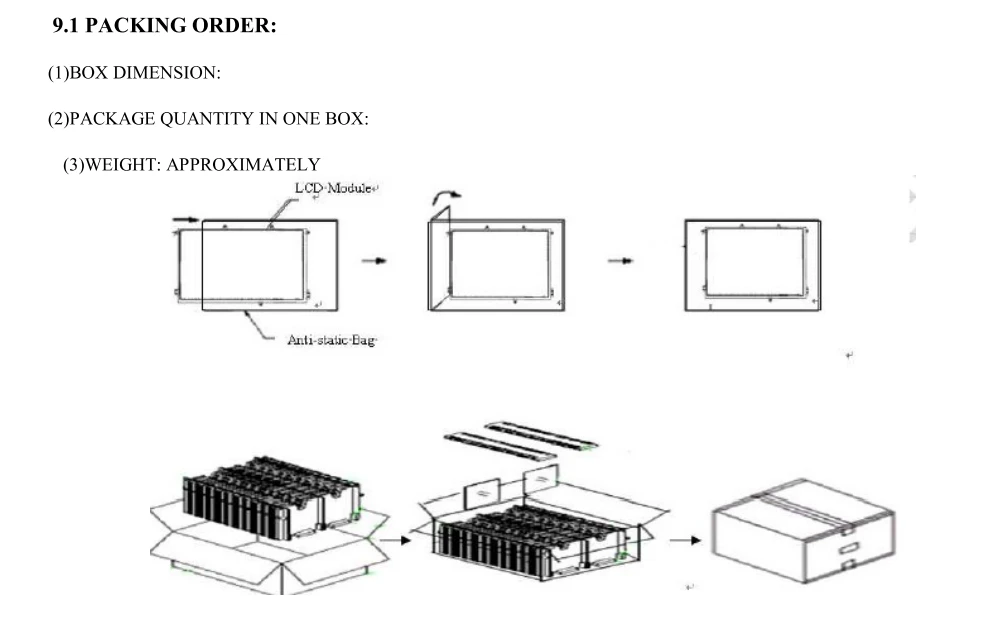

Our Product Packing
LCM LCD Display Module – Product Description
Overview
The LCM (LCD Module) LCD Display Module is a fully integrated display solution combining high-quality LCD technology with an embedded controller for seamless integration into various electronic systems. These modules are widely used in consumer electronics, industrial equipment, medical devices, and IoT applications due to their excellent readability, low power consumption, and compact design.
Our LCM LCD modules feature built-in controllers, eliminating the need for external driver ICs, and support multiple interface options for flexible system integration. With customizable viewing angles, backlight options, and display configurations, these modules provide an optimal display solution for diverse applications.
Key Features
✔ Complete Display Solution - Integrated LCD panel with controller IC
✔ Multiple Interface Options - Parallel, SPI, I2C, or MCU bus interfaces
✔ Wide Operating Temperature - Standard (-20°C to +70°C) and extended ranges available
✔ High Contrast Ratio - Excellent readability in various lighting conditions
✔ Low Power Consumption - Ideal for battery-powered devices
✔ Customization Support - Various sizes, resolutions, and special requirements
✔ Long Lifespan - Robust construction for reliable long-term operation
Technical Specifications
| Parameter | Specifications |
|---|---|
| Display Type | STN, FSTN, TFT (optional) |
| Viewing Direction | 6 o'clock, 12 o'clock, or customizable |
| Interface | 6800/8080 parallel, SPI, I2C |
| Resolution | From 16×2 characters to 320×240 pixels |
| Operating Voltage | 3V, 3.3V, or 5V options |
| Backlight | LED (white/blue/green/red), EL optional |
| Viewing Angle | 6:00, 12:00 standard (others available) |
| Operating Temp. | -30°C to +80°C (extended range optional) |
| Driver IC | ST7920, RA8835, SSD1306, etc. |
Applications
-
Industrial Control Panels (HMI interfaces)
-
Medical Equipment (patient monitors, diagnostic devices)
-
Consumer Electronics (home appliances, smart devices)
-
Automotive Displays (dashboard, control panels)
-
POS Systems (retail terminals, kiosks)
-
Test & Measurement Equipment
-
IoT and Smart Home Devices
Why Choose Our LCM LCD Modules?
✅ Complete Solution - No need for separate controller design
✅ Fast Time-to-Market - Ready-to-use with minimal development effort
✅ Quality Assurance - Strict quality control and reliability testing
✅ Technical Support - Comprehensive documentation and design assistance
✅ Customization Options - Tailored solutions for specific applications
Ordering Information
📌 Standard Models - Available for immediate shipment
📌 Custom Solutions - Modified FSTN/TFT, special interfaces, or mechanical designs
📌 OEM/ODM Services - Branding, special packaging, and firmware customization
📌 Technical Support - Reference designs, driver code, and integration guides
🔹 Contact Us Today to discuss your specific LCM LCD module requirements!
Note: Specifications may vary depending on model and configuration. Please consult our technical team for detailed product information.
