TFT LCD (Thin-Film Transistor Liquid Crystal Display) panels have become an essential part of our daily lives, from the smartphones we use every morning to the large screens at shopping malls. As a TFT LCD panel supplier, I've got a pretty good handle on the different types out there. So, let's dive right in and take a look at what's available in the market.
TN (Twisted Nematic) TFT LCD Panels
TN panels are one of the oldest types of TFT LCD panels. They're known for their fast response times, which makes them a popular choice for gaming monitors. The liquid crystals in TN panels are twisted at a 90-degree angle. When an electric current is applied, the crystals untwist, allowing light to pass through.
One of the biggest advantages of TN panels is their low cost. They're relatively inexpensive to produce, which means you can get a decent-sized TN panel for a pretty good price. Also, because of their fast response times (usually around 1 - 4 milliseconds), they can handle fast-moving images without much blurring.
However, TN panels do have some drawbacks. Their viewing angles are quite poor compared to other types of panels. If you look at a TN panel from the side, the colors can look washed out, and the contrast can drop significantly. Also, their color accuracy isn't the best. They typically cover only about 40 - 60% of the sRGB color gamut, which means the colors might not look as vibrant or accurate as you'd like.
IPS (In-Plane Switching) TFT LCD Panels
IPS panels are a step up from TN panels in terms of color accuracy and viewing angles. In an IPS panel, the liquid crystals are aligned horizontally, and when an electric current is applied, they rotate in the same plane. This design allows for a much wider viewing angle, usually up to 178 degrees both horizontally and vertically.
The color accuracy of IPS panels is also much better than TN panels. They can cover up to 100% of the sRGB color gamut, which means the colors look more vivid and true to life. This makes them a great choice for photo and video editing, as well as for general use where accurate colors are important.
But IPS panels aren't perfect. They have a slower response time compared to TN panels, usually around 6 - 12 milliseconds. This can result in some motion blur when watching fast-paced content or playing games. Also, they tend to be more expensive than TN panels because of the more complex manufacturing process.
VA (Vertical Alignment) TFT LCD Panels
VA panels are a compromise between TN and IPS panels. They offer better contrast ratios and viewing angles than TN panels, while still being more affordable than IPS panels. In a VA panel, the liquid crystals are aligned vertically when no electric current is applied. When an electric current is applied, the crystals tilt, allowing light to pass through.
The main advantage of VA panels is their high contrast ratio. They can achieve much deeper blacks than TN and IPS panels, which makes them great for watching movies and playing games with dark scenes. Their viewing angles are also better than TN panels, although not as good as IPS panels.
However, VA panels also have some limitations. Their response times are slower than TN panels, similar to IPS panels. This can cause some ghosting or blurring in fast-moving scenes. Also, their color accuracy isn't as good as IPS panels, although it's still better than TN panels.
AMOLED (Active-Matrix Organic Light-Emitting Diode) TFT LCD Panels
AMOLED panels are a relatively new type of display technology. Unlike traditional TFT LCD panels, which require a backlight, AMOLED panels have each pixel emit its own light. This allows for true blacks, as the pixels can be completely turned off.
The color accuracy and contrast ratio of AMOLED panels are outstanding. They can cover a wide color gamut, and the colors look incredibly vivid and saturated. The response times are also very fast, making them ideal for gaming and high-speed video content.
But AMOLED panels come with a high price tag. The manufacturing process is more complex and expensive, which makes them more costly than other types of TFT LCD panels. Also, they can suffer from burn-in issues, where static images displayed for a long time can leave a permanent mark on the screen.
Specialized TFT LCD Panels
Apart from the common types mentioned above, there are also specialized TFT LCD panels designed for specific applications.
Industrial TFT LCD Panels
Industrial TFT LCD panels are built to withstand harsh environments. They're used in factories, outdoor kiosks, and other industrial settings. These panels are designed to have high brightness, wide temperature ranges, and long lifespans. They can also be customized to meet specific requirements, such as touchscreen capabilities or anti-glare coatings.

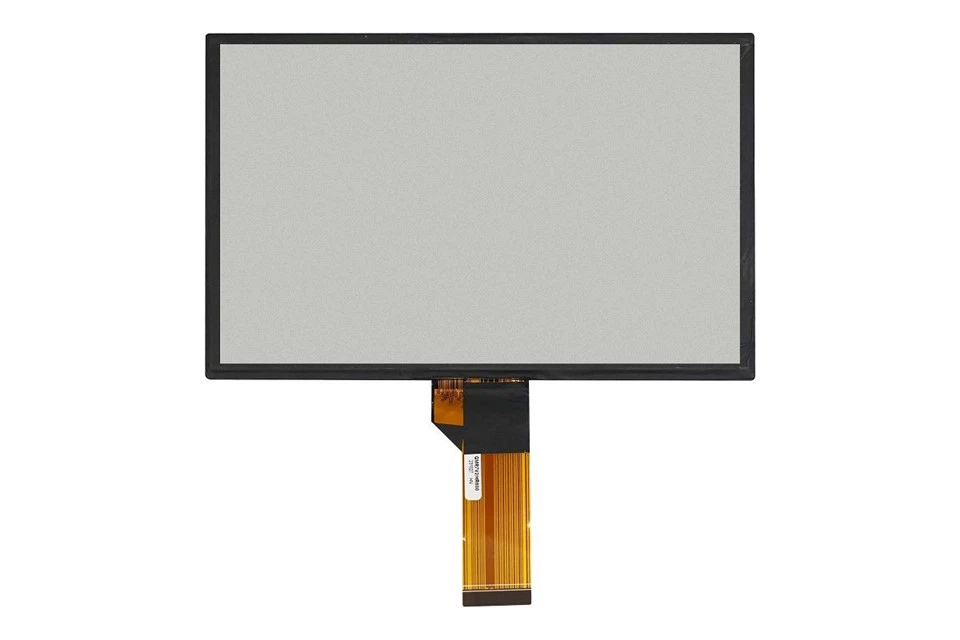

Medical equipment LCD panel
Medical equipment requires high levels of accuracy and reliability. Medical LCD panel are designed to meet these requirements. They have high resolution, excellent color accuracy, and high brightness to ensure clear and accurate display of medical images and data.

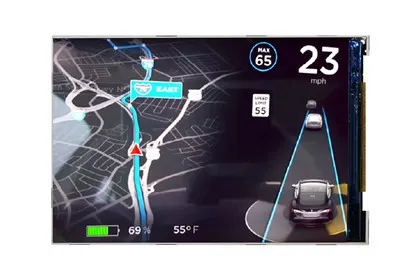

Automotive TFT LCD Panels
Automotive TFT LCD panels are used in car dashboards, infotainment systems, and rear-seat entertainment. They need to be able to withstand vibrations, temperature changes, and sunlight. These panels often have anti-reflective coatings and high brightness to ensure visibility in different lighting conditions.
Conclusion
As you can see, there are many different types of TFT LCD panels, each with its own set of advantages and disadvantages. The choice of panel depends on your specific needs and budget. Whether you're looking for a panel for gaming, photo editing, or industrial applications, there's a TFT LCD panel out there that's right for you.
If you're interested in purchasing TFT LCD panels, we're here to help. We offer a wide range of LCD module and can provide customized solutions to meet your specific requirements. Don't hesitate to reach out to us for a quote and start a procurement discussion.
References
- "Fundamentals of Flat Panel Displays" by Kenji Okano
- "Liquid Crystal Displays: Addressing Schemes and Electro - Optical Effects" by Ernst Lueder
