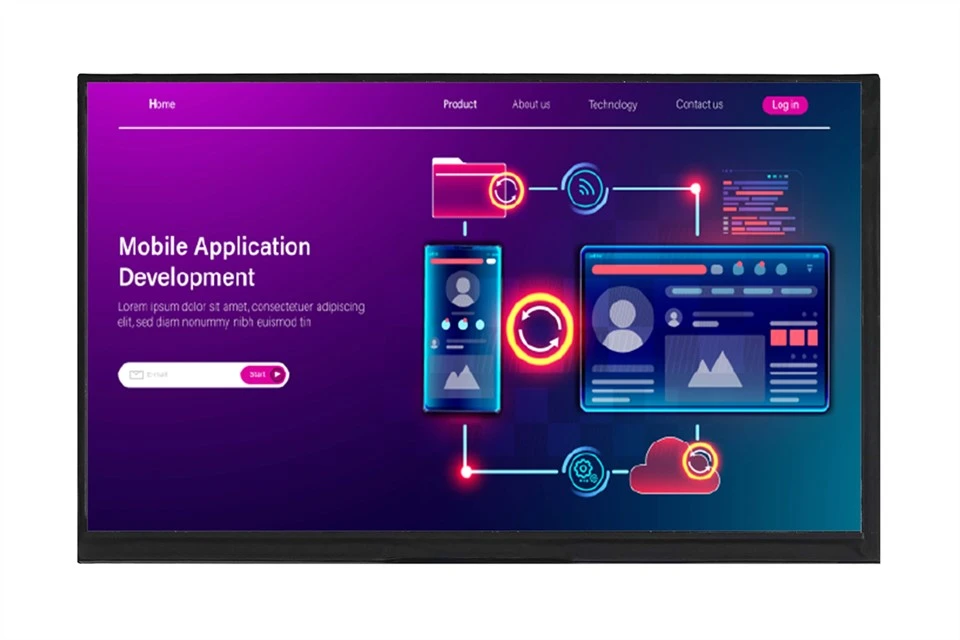

Instrument Panel TFT LCD Module

High-Performance Display Solution for Automotive & Industrial Applications

---

Product Overview

Our Instrument Panel TFT LCD Module is a premium display solution designed for automotive dashboards, industrial control systems, and medical equipment. Featuring high brightness, wide temperature tolerance, and ultra-reliable performance, this module delivers crisp, real-time data visualization in the most demanding environments.

---

Key Features & Competitive Advantages

✅ High-Resolution Display – Full-color TFT LCD with wide viewing angles
✅ Extended Temperature Range – Operational from -40°C to +85°C
✅ Sunlight Readability – 1000+ nits brightness with anti-glare treatment
✅ Long Lifespan – 30,000+ hours MTBF (Mean Time Between Failures)
✅ Customizable Interface – Supports LVDS, RGB, and SPI interfaces
✅ Robust Construction – Aluminum frame + strengthened glass surface
✅ Touchscreen Options – Capacitive touch available

---

Technical Specifications

Parameter	Specification
Screen Size	7" to 12.3" (Custom sizes available)
Resolution	800×480 to 1920×720 (HD)
Brightness	500-1500 cd/m² (Customizable)
Contrast Ratio	1000:1
Viewing Angle	170° (H) / 160° (V)
Response Time	<10-30ms
Operating Voltage	3.3V / 5V / 12V (Customizable)
Backlight	LED (30,000+ hours lifespan)
Touch Panel	Optional (PCAP)
Operating Temperature	-30~85 / -40~+85°C
Storage Temperature	-40°C to +85°C
Certifications	CE / ROSH /PPAP / REACH



---

Functional Characteristics

Superior Display Performance

Wide Color Gamut (NTSC 70%) – Vibrant, accurate colors

High Refresh Rate (60Hz+) – Smooth dynamic content display

Dimming Control (PWM/DC) – Adjustable for day/night modes

Enhanced Durability

Anti-Vibration Design – Stable performance in high-shock environments

IP65/IP67 Options – Dustproof & waterproof variants available

EMI/ESD Protection – Reliable operation in electrically noisy environments



---



Application Scenarios

Automotive

Digital Dashboards – Full-color instrument clusters

Center Stack Displays – Infotainment & HVAC control

Heads-Up Displays (HUDs) – Critical driving data projection

Industrial & Medical

Factory Automation – Machine operation monitoring

Medical Devices – Patient monitoring systems

Avionics – Aircraft instrumentation displays

Commercial Vehicles

Heavy Equipment – Construction/farm machinery displays

Fleet Management – Telematics and diagnostics interfaces

---

Customer Success Stories

Automotive OEM Partnerships

🚗 Tier 1 Supplier for European EV Maker – 500,000+ units delivered for next-gen digital cockpits
🚙 Japanese Automotive Brand – Custom 10.25" curved display integration

Industrial Applications

🏭 Global CNC Manufacturer – Deployed in 10,000+ industrial control panels
⚕️ Medical Device Leader – FDA-approved modules for patient monitors

Aftermarket Solutions

🔧 Leading Car Audio Brand – High-brightness displays for retrofit systems

---

Why Choose Our TFT LCD Module?

🔹 Automotive-Grade Reliability – AEC-Q100 certified for harsh environments
🔹 Customization Flexibility – Tailored sizes, interfaces, and firmware
🔹 Sunlight-Readable – Best-in-class outdoor visibility
🔹 Global Support – Local technical assistance worldwide

---

Power Your Next-Gen Display System with Confidence!

📞 Contact Our Engineering Team For:

• Custom size/interface requirements

• Prototyping support

• Volume production quotes
